SEGMENTED 90 BEND
SEGMENTED 90 BEND

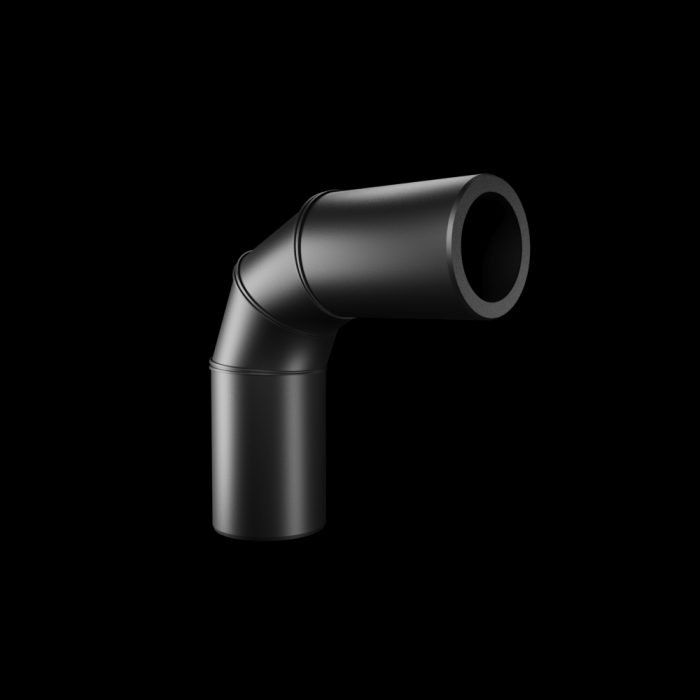

The HDPE Segmented 90° Bend Fabricated by PRIME is manufactured to the latest and highest standards using high-quality HDPE pipes, ensuring precise direction changes and smooth flow in pipeline systems. Designed for water supply, irrigation, and firefighting networks, it provides a secure, leak-proof connection with exceptional durability and long-term performance for various applications.
| Code | de | Z | I | R | |
|---|---|---|---|---|---|
| HP-10PN-FB-LR90-110 | 110 | 315 | 150 | 165 | |
| HP-10PN-FB-LR90-125 | 125 | 338 | 150 | 188 | |
| HP-10PN-FB-LR90-140 | 140 | 360 | 150 | 210 | |
| HP-10PN-FB-LR90-160 | 160 | 390 | 150 | 240 | |
| HP-10PN-FB-LR90-180 | 180 | 420 | 150 | 270 | |
| HP-10PN-FB-LR90-200 | 200 | 450 | 150 | 300 | |
| HP-10PN-FB-LR90-225 | 225 | 488 | 150 | 338 | |
| HP-10PN-FB-LR90-250 | 250 | 625 | 250 | 375 | |
| HP-10PN-FB-LR90-280 | 280 | 670 | 250 | 420 | |
| HP-10PN-FB-LR90-315 | 315 | 778 | 300 | 478 | |
| HP-10PN-FB-LR90-355 | 355 | 833 | 300 | 533 | |
| HP-10PN-FB-LR90-400 | 400 | 900 | 300 | 600 | |
| HP-10PN-FB-LR90-450 | 450 | 975 | 300 | 675 | |
| HP-10PN-FB-LR90-500 | 500 | 1100 | 350 | 750 | |
| HP-10PN-FB-LR90-560 | 560 | 1190 | 350 | 840 | |
| HP-10PN-FB-LR90-630 | 630 | 1295 | 350 | 945 |
| Code | de | Z | I | R | |
|---|---|---|---|---|---|
| HP-16PN-FB-LR90-110 | 110 | 315 | 150 | 165 | |
| HP-16PN-FB-LR90-125 | 125 | 338 | 150 | 188 | |
| HP-16PN-FB-LR90-140 | 140 | 360 | 150 | 210 | |
| HP-16PN-FB-LR90-160 | 160 | 390 | 150 | 240 | |
| HP-16PN-FB-LR90-180 | 180 | 420 | 150 | 270 | |
| HP-16PN-FB-LR90-200 | 200 | 450 | 150 | 300 | |
| HP-16PN-FB-LR90-225 | 225 | 488 | 150 | 338 | |
| HP-16PN-FB-LR90-250 | 250 | 625 | 250 | 375 | |
| HP-16PN-FB-LR90-280 | 280 | 670 | 250 | 420 | |
| HP-16PN-FB-LR90-315 | 315 | 778 | 300 | 478 | |
| HP-16PN-FB-LR90-355 | 355 | 833 | 300 | 533 | |
| HP-16PN-FB-LR90-400 | 400 | 900 | 300 | 600 | |
| HP-16PN-FB-LR90-450 | 450 | 975 | 300 | 675 | |
| HP-16PN-FB-LR90-500 | 500 | 1100 | 350 | 750 | |
| HP-16PN-FB-LR90-560 | 560 | 1190 | 350 | 840 | |
| HP-16PN-FB-LR90-630 | 630 | 1295 | 350 | 945 |
| Code | de | Z | I | R | |
|---|---|---|---|---|---|
| HP-20PN-FB-LR90-110 | 110 | 315 | 150 | 165 | |
| HP-20PN-FB-LR90-125 | 125 | 338 | 150 | 188 | |
| HP-20PN-FB-LR90-140 | 140 | 360 | 150 | 210 | |
| HP-20PN-FB-LR90-160 | 160 | 390 | 150 | 240 | |
| HP-20PN-FB-LR90-180 | 180 | 420 | 150 | 270 | |
| HP-20PN-FB-LR90-200 | 200 | 450 | 150 | 300 | |
| HP-20PN-FB-LR90-225 | 225 | 488 | 150 | 338 | |
| HP-20PN-FB-LR90-250 | 250 | 625 | 250 | 375 | |
| HP-20PN-FB-LR90-280 | 280 | 670 | 250 | 420 | |
| HP-20PN-FB-LR90-315 | 315 | 778 | 300 | 478 | |
| HP-20PN-FB-LR90-355 | 355 | 833 | 300 | 533 | |
| HP-20PN-FB-LR90-400 | 400 | 900 | 300 | 600 | |
| HP-20PN-FB-LR90-450 | 450 | 975 | 300 | 675 | |
| HP-20PN-FB-LR90-500 | 500 | 1100 | 350 | 750 | |
| HP-20PN-FB-LR90-560 | 560 | 1190 | 350 | 840 | |
| HP-20PN-FB-LR90-630 | 630 | 1295 | 350 | 945 |
| Code | de | Z | I | R | |
|---|---|---|---|---|---|
| HP-25PN-FB-LR90-110 | 110 | 315 | 150 | 165 | |
| HP-25PN-FB-LR90-125 | 125 | 338 | 150 | 188 | |
| HP-25PN-FB-LR90-140 | 140 | 360 | 150 | 210 | |
| HP-25PN-FB-LR90-160 | 160 | 390 | 150 | 240 | |
| HP-25PN-FB-LR90-180 | 180 | 420 | 150 | 270 | |
| HP-25PN-FB-LR90-200 | 200 | 450 | 150 | 300 | |
| HP-25PN-FB-LR90-225 | 225 | 488 | 150 | 338 | |
| HP-25PN-FB-LR90-250 | 250 | 625 | 250 | 375 | |
| HP-25PN-FB-LR90-280 | 280 | 670 | 250 | 420 | |
| HP-25PN-FB-LR90-315 | 315 | 778 | 300 | 478 | |
| HP-25PN-FB-LR90-355 | 355 | 833 | 300 | 533 | |
| HP-25PN-FB-LR90-400 | 400 | 900 | 300 | 600 | |
| HP-25PN-FB-LR90-450 | 450 | 975 | 300 | 675 | |
| HP-25PN-FB-LR90-500 | 500 | 1100 | 350 | 750 | |
| HP-25PN-FB-LR90-560 | 560 | 1190 | 350 | 840 | |
| HP-25PN-FB-LR90-630 | 630 | 1295 | 350 | 945 |
