Multi-Function Pipe Repair and Connectors
Multi-Function Pipe Repair and Connectors - Image 2
Multi-Function Pipe Repair and Connectors - Image 3
Multi-Function Pipe Repair and Connectors - Image 4
Multi-Function Pipe Repair and Connectors - Image 5
Multi-Function Pipe Repair and Connectors - Image 6

Multi-Function Pipe Repair and Connectors

Multi-Function Pipe Repair and Connectors

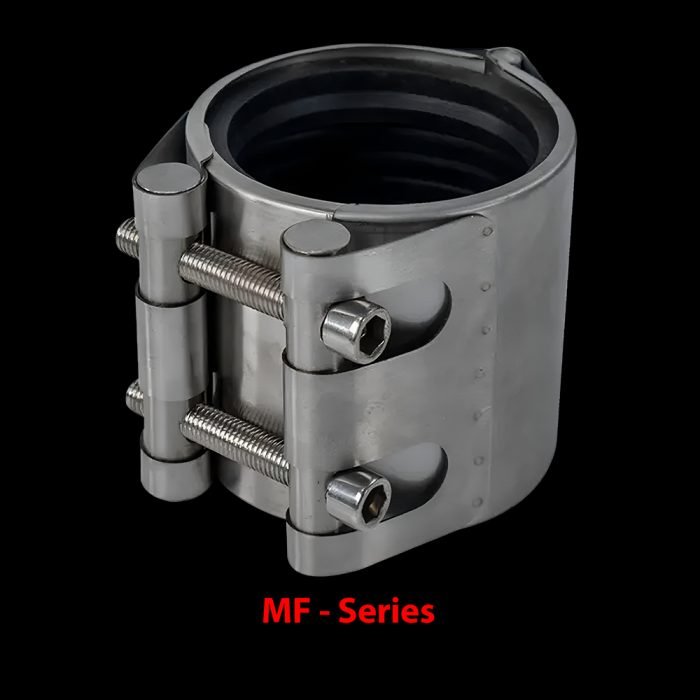

  • Single-Section Multi-Function Pipe Coupling MF Series For Connect Pipes
    1.  Applied to connection of various kinds of metal pipes and composite materials of pipelines.
    2. Refer to:DIN86128-1,DIN86128-2
    3. PN7-PN16
    4. MF-S(Short  Type Pipe Coupling)
    5. MF-L(Long Type Pipe Coupling)

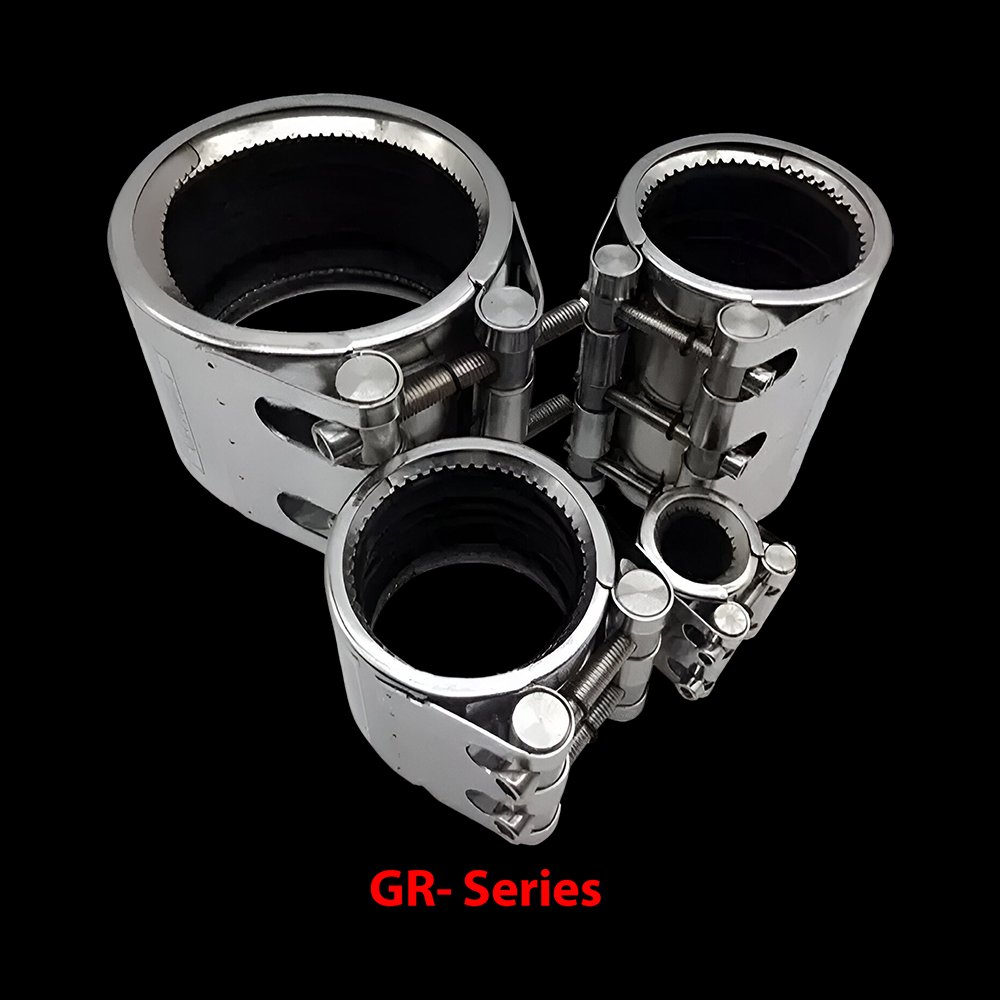

  • Gear-Ring Type Multi-Function Pipe Coupling GR Series Applied To Kinds Of Metal Pipes
    1. Gear-Ring Type Multi- Function pipe coupling GR.
    2. Gear-Ring short Type.
    3. Gear -Ring long Type.
    4. Applied to connection of various kinds of metal pipes and composite materials of pipelines.

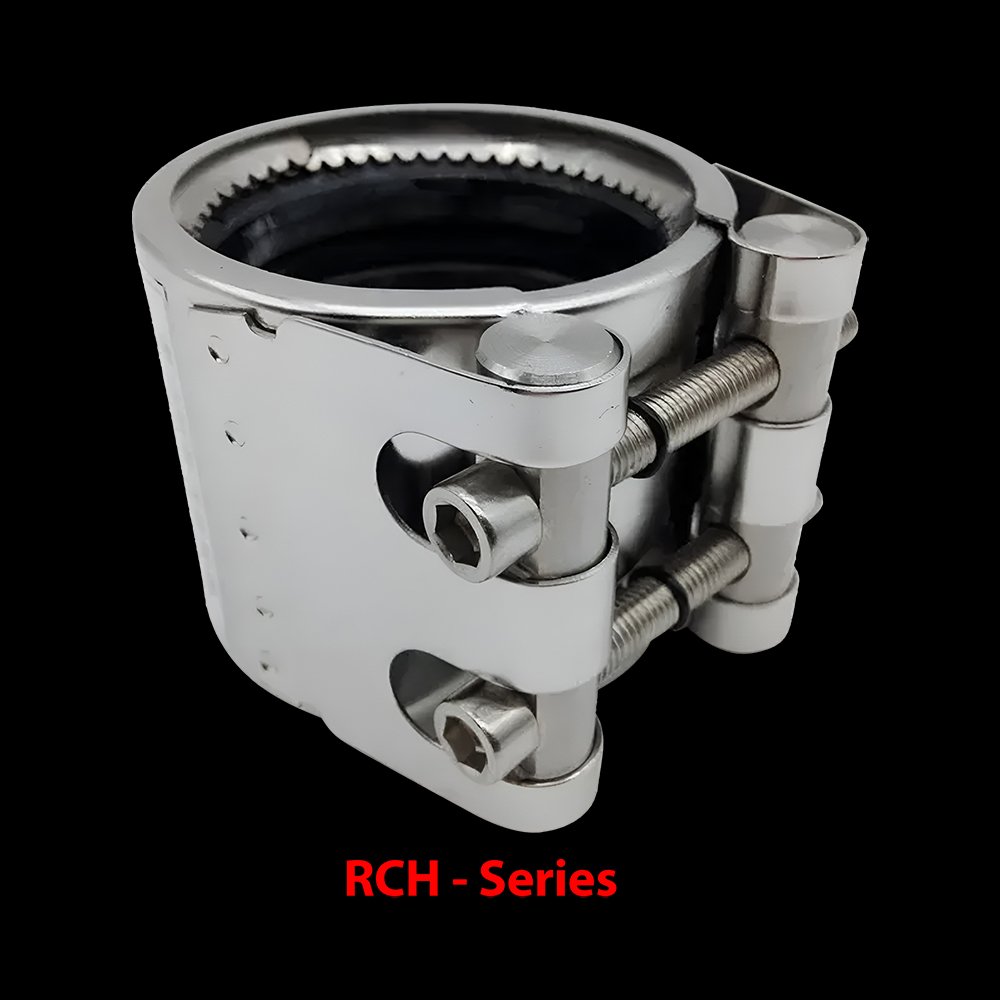

  • Folding Type Pipe Repair Clamp RCH Series For Quick Repair Pipe Leak Can Be Customized
    1.  A ring shaped folding Series is widely used on quick repairing of pipe leaks
    2. Folding short Type(RCH-S)
    3. Folding Long Type (RCH-L)
    4. Size :OD42-377mm
  • Double-Section Pipe Repair Coupling RCD Series Used On New PipeLines And Repairing Pipe leaks
    1.  Double-section pipe repair coupling RCD
    2.  Double-section short clamp
    3. Double- section long clamp.
    4. Double section pipe repair coupling RCD is mainly used to the connection of new pipelines.
  • Opening Type Pipe Repair Clamp RCE Series Stainless Steel Materials Large Range
    1.  Name:  Opening Type Pipe Repair Clamp RCE
    2. RCE series is the most widely used one,  highly optimized for general use.
    3.  Safe,  convenient and efficient in installation.

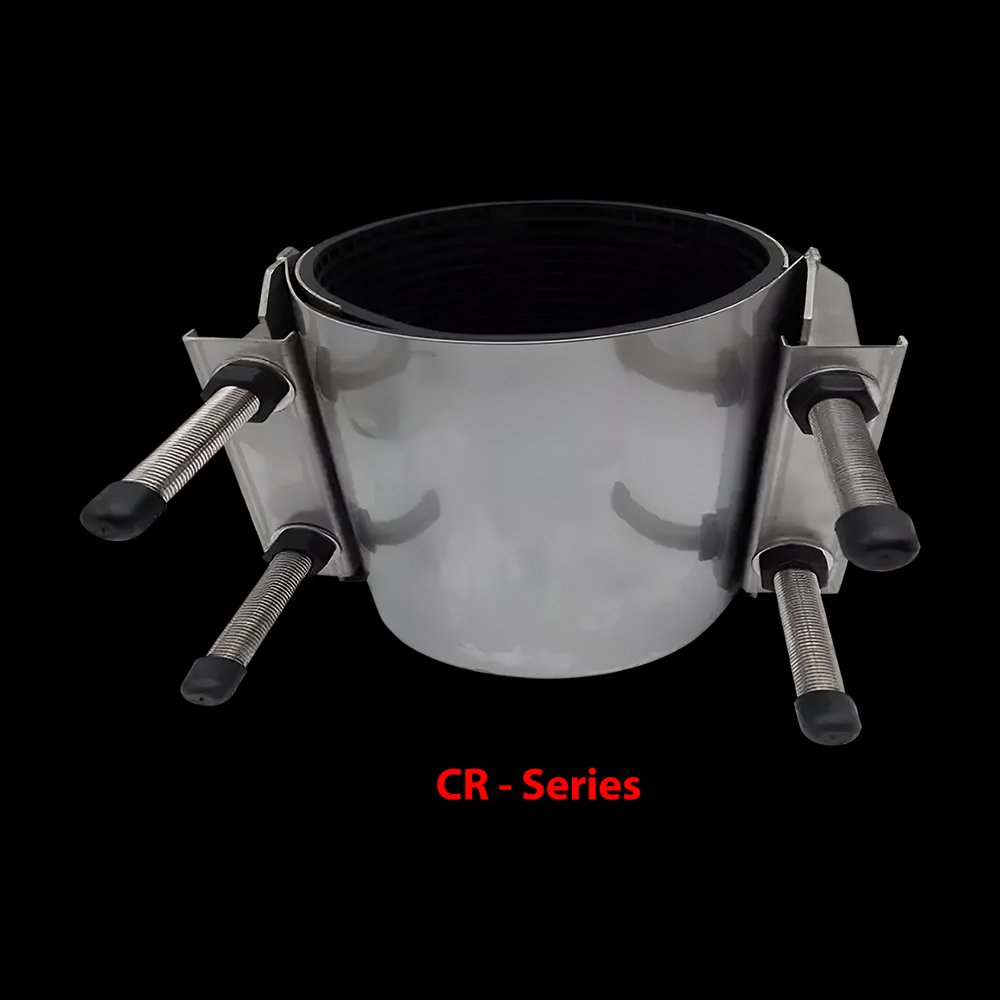

  • Stainless Steel Band Pipe Repair Clamp CR Series Used For Big Size Steel Or Plastic Pipe
    1. Stainless Steel Band Repair Clamp CR
    2. Single band repair clamp
    3. Double band repair clamp
    4.  CR series is good at repairing pin holes and breaks caused by aging or rusting.
OD Range pressure L D M Nm
18 17-19 PN16 57 35 6 10
21.7 21-23 PN16 57 45 6 10
25 24.5-25.5 PN16 57 50 6 10
27.2 26-28 PN16 57 50 6 10
32 31.5-32.5 PN16 57 55 6 10
34 33-35 PN16 57 55 6 10
40 39.5-41.5 PN16 57 55 6 10
42 42-44 PN16 57 65 6 16
44.5 44-45.1 PN16 57 65 6 16
48.6 47-49 PN16 57 70 6 16
54 53.6-54.6 PN16 57 70 8 30
57 56.3-57.7 PN16 57 80 8 30
60.3 59-62 PN16 57 85 8 30
63 62.2-63.9 PN16 80 85 8 30
76.1 75-78 PN16 80 100 8 30
79.9 78.8-80.8 PN16 80 100 10 30
88.9 88-92 PN16 107 110 10 50
108 106-110 PN16 107 130 10 50
110 108.9-111.2 PN16 107 130 10 50
114.3 112-116 PN16 107 125 10 50
118 116.6-119.2 PN16 107 140 10 50
125 123.6-126.5 PN16 107 150 10 50
133 131.5-134.4 PN16 107 160 10 80
140 137-143 PN16 116 165 12 80
159 157-161 PN16 116 185 12 80
165.2 163.2-166.7 PN16 116 190 12 80
168 166-170.2 PN16 116 195 12 80
170 168.2-171.9 PN16 116 195 12 80
200 198.2-201.5 PN16 155 240 14 100
219 217-221 PN16 155 250 14 100
250 250-254 PN16 155 285 14 100
273 271-275 PN16 155 305 14 100
315 313-317 PN16 155 340 14 100
325 323-327 PN16 155 355 14 100
355.6 354-358 PN16 155 385 14 100
377 375-379 PN16 155 410 14 100
OD Range pressure L D M Nm
42 42-44 PN16 100 65 6 16
44.5 44-45.1 PN16 100 65 6 16
48.6 47-49 PN16 100 70 6 16
54 53.6-54.6 PN16 100 70 8 30
57 56.3-57.7 PN16 100 80 8 30
60.3 59-62 PN16 139 85 8 30
63 62.2-63.9 PN16 139 85 8 30
76.1 75-78 PN16 139 100 8 30
79.9 78.8-80.8 PN16 139 100 10 30
88.9 88-92 PN16 203 110 10 50
108 106-110 PN16 203 130 10 50
110 108.9-111.2 PN16 203 130 10 50
114.3 112-116 PN16 203 125 10 50
118 116.6-119.2 PN16 203 140 10 50
125 123.6-126.5 PN16 203 150 10 50
133 131.5-134.4 PN16 203 160 10 80
140 137-143 PN16 203 165 12 80
159 157-161 PN16 203 185 12 80
165.2 163.2-166.7 PN16 203 190 12 80
168 166-170.2 PN16 203 195 12 80
170 168.2-171.9 PN16 203 195 12 80
200 198.2-201.5 PN16 255 240 14 100
219 217-221 PN16 255 250 14 100
250 250-254 PN16 255 285 14 100
273 271-275 PN16 255 305 14 100
315 313-317 PN16 255 340 14 100
325 323-327 PN16 255 355 14 100
355.6 354-358 PN16 255 385 14 100
377 375-379 PN16 255 410 14 100
OD Range pressure L D M Nm
42 42-44 PN16 100 65 6 16
44.5 44-45.1 PN16 100 65 6 16
48.6 47-49 PN16 100 70 6 16
54 53.6-54.6 PN16 100 70 8 30
57 56.3-57.7 PN16 100 80 8 30
60.3 59-62 PN16 139 85 8 30
63 62.2-63.9 PN16 139 85 8 30
76.1 75-78 PN16 139 100 8 30
79.9 78.8-80.8 PN16 139 100 10 30
88.9 88-92 PN16 203 110 10 50
108 106-110 PN16 203 130 10 50
110 108.9-111.2 PN16 203 130 10 50
114.3 112-116 PN16 203 125 10 50
118 116.6-119.2 PN16 203 140 10 50
125 123.6-126.5 PN16 203 150 10 50
133 131.5-134.4 PN16 203 160 10 80
140 137-143 PN16 203 165 12 80
159 157-161 PN16 203 185 12 80
165.2 163.2-166.7 PN16 203 190 12 80
168 166-170.2 PN16 203 195 12 80
170 168.2-171.9 PN16 203 195 12 80
200 198.2-201.5 PN16 255 240 14 100
219 217-221 PN16 255 250 14 100
250 250-254 PN16 255 285 14 100
273 271-275 PN16 255 305 14 100
315 313-317 PN16 255 340 14 100
325 323-327 PN16 255 355 14 100
355.6 354-358 PN16 255 385 14 100
377 375-379 PN16 255 410 14 100
DN Range Bar Nm
180 178-182 16 40
200 198-202 15 40
219.1 217-222 13.5 40
250 248-253 12 40
267 264-270 11 40
273 270-276 11 40
304 301-307 10 40
323.9 321-327 9.5 40
355.6 353-358 8.5 40
377 374-379 8 40
406.4 404-409 7.5 50
457.2 454-460 6.5 50
508 505-511 6 50
558.8 555-562 7 50
609.6 606-613 6.5 50
711.2 707-715 5.5 50
762 758-766 5 60
812.8 809-817 5 60
914.4 910-918 4.5 60
1016 1012-1020 1 70
1117.6 1113-1122 3.5 70
1219.2 1215-1224 3.52 80
1320.8 1316-1325 3.02 60
1422.4 1418-1427 3.02 70
1524 1519-1529 2.52 70
1625.6 1621-1631 2.52 80
1727.2 1722-1732 2.52 80
1828.8 1824-1834 2.02 90
1930.4 1925-1936 2.02 90
2032 2027-2037 2.02 100
