Electrofusion Elbow 45°
Electrofusion Elbow 45°

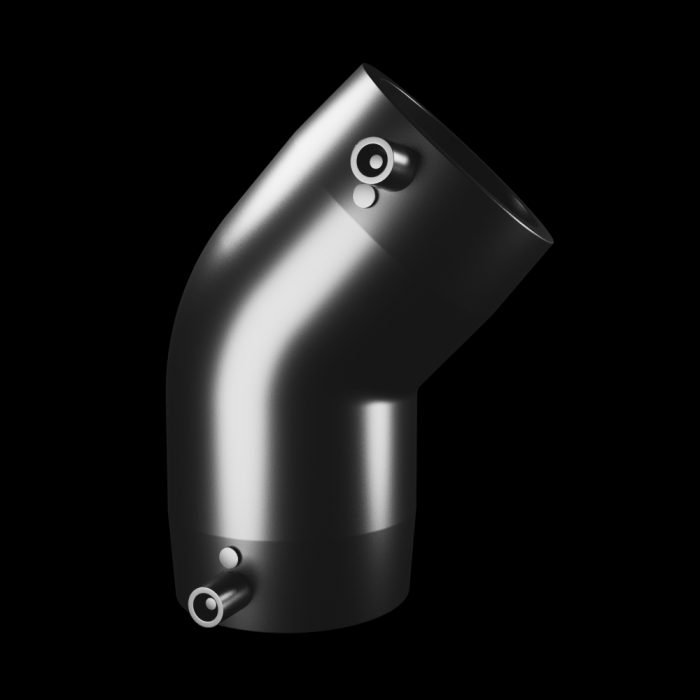

The HDPE Electrofusion 45° Elbow by PRIME is designed and manufactured to the highest standards, ensuring precise and reliable connections for water supply, irrigation, and firefighting networks. Made from high-quality HDPE and utilizing advanced electrofusion technology, it provides superior strength, corrosion resistance, and long-term durability for efficient pipeline installations.

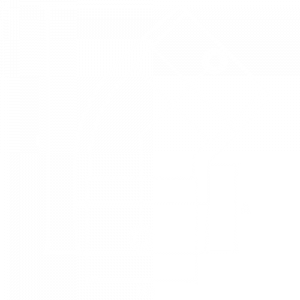

| Code | Dn | Dn1 | L | A | B | |
|---|---|---|---|---|---|---|
| HP-PN10-EF-EL45-710 | 710 | |||||
| HP-PN10-EF-EL45-800 | 800 |
| Code | Dn | Dn1 | L | A | B | |
|---|---|---|---|---|---|---|
| HP-PN16-EF-EL45-050 | 50 | x | 130 | 50 | x | |
| HP-PN16-EF-EL45-063 | 63 | x | 180 | 63 | x | |
| HP-PN16-EF-EL45-075 | 90 | x | 230 | 83 | x | |
| HP-PN16-EF-EL45-090 | 110 | x | 270 | 90 | x | |
| HP-PN16-EF-EL45-110 | 160 | x | 280 | 85 | x | |
| HP-PN16-EF-EL45-125 | 200 | x | 330 | 100 | x | |
| HP-PN16-EF-EL45-160 | 250 | x | 420 | 115 | x | |
| HP-PN16-EF-EL45-180 | 315 | x | 470 | 130 | x | |
| HP-PN16-EF-EL45-200 | 400 | x | 580 | 140 | x | |
| HP-PN16-EF-EL45-250 | 450 | x | 587 | 145 | x | |
| HP-PN16-EF-EL45-315 | 500 | x | 587 | 151 | x | |
| HP-PN16-EF-EL45-400 | 560 | x | 735 | 180 | x | |
| HP-PN16-EF-EL45-450 | 630 | x | 735 | 185 | x |
