Electrofusion Branch Saddle
Electrofusion Branch Saddle

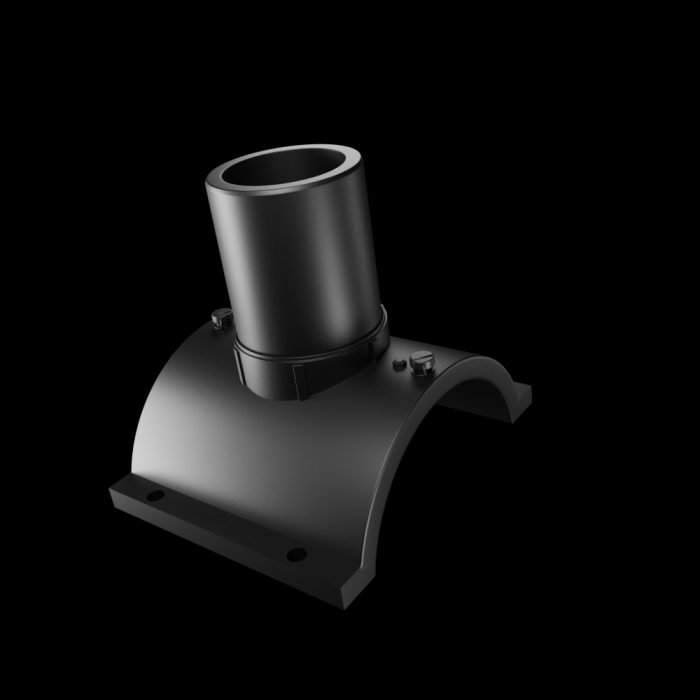

Introducing the HDPE Electrofusion Branch Saddle SDR11 from PRIME, where innovation meets reliability in piping solutions. Our branch saddle is expertly designed to facilitate seamless connections in water and gas distribution systems, ensuring optimal performance and durability. Made from high-density polyethylene (HDPE), it offers exceptional resistance to corrosion, chemicals, and environmental stressors, making it a trusted choice for demanding applications. The SDR11 rating guarantees that you can manage higher pressures with confidence. With PRIME’s commitment to quality and precision engineering, you can enhance the efficiency and longevity of your infrastructure. Choose PRIME’s HDPE Electrofusion Branch Saddle SDR11 and experience the difference in performance and reliability today!

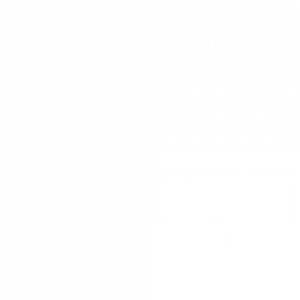

| Code | Dn | Dn1 | L | A | B | |
|---|---|---|---|---|---|---|
| HP-PN16-EF-BS-063X032 | 63 | 32 | 110 | 100 | 79 | |
| HP-PN16-EF-BS-090×063 | 90 | 63 | 145 | 160 | 80 | |
| HP-PN16-EF-BS-110×032 | 110 | 32 | 145 | 160 | 80 | |
| HP-PN16-EF-BS-110×063 | 110 | 63 | 145 | 160 | 80 | |
| HP-PN16-EF-BS-160×063 | 160 | 63 | 190 | 238 | 100 | |
| HP-PN16-EF-BS-160×090 | 160 | 90 | 190 | 238 | 100 | |
| HP-PN16-EF-BS-200×090 | 200 | 63 | 190 | 250 | 120 | |
| HP-PN16-EF-BS-200×090 | 200 | 90 | 190 | 250 | 115 | |
| HP-PN16-EF-BS-225×032 | 225 | 32 | 190 | 248 | 66 | |
| HP-PN16-EF-BS-225×063 | 225 | 63 | 190 | 250 | 108 | |
| HP-PN16-EF-BS-250×063 | 250 | 63 | 190 | 300 | 115 | |
| HP-PN16-EF-BS-250×090 | 250 | 90 | 190 | 300 | 115 | |
| HP-PN16-EF-BS-315×063 | 315 | 63 | 190 | 300 | 115 | |
| HP-PN16-EF-BS-315×090 | 315 | 90 | 190 | 300 | 115 |
